Technical Specification
Nominal Voltage..............................................................................12V (6 cells per unit)
Nominal Capacity(20°C)
20hour rate(0.225A,10.8V)..............................................................................4.5Ah
10hour rate(0.43A,10.8V)................................................................................4.3Ah
5hour rate(0.8A,10.5V)..................................................................................4.0Ah
1hour rate(2.99A,9.6V)................................................................................2.99Ah
Dimension(mm)...............................................................L90 x W70 x H101 x TH107mm
Approx. Weight .......................................................................................1.45kg (3.20lbs)
Terminal Type.....................................................................................................F1 or F2
Internal Resistance..............................................................32mΩ(fully Charged @20°C)
Max.Charge Current...............................................................................................1.35A
Max.Discharge Current (5s)....................................................................................67.5A
Ambient Temperature
Discharge....................................................................................................-15-45°C
Charge........................................................................................................-15-45°C
Storage.......................................................................................................-15-45°C
Capacity Affected by Temp.(10 hr capacity)
105% @40°C
100%@25°C
85%@0°C
65%@-15°C
Self-Discharge @20°C.................................................................Approx. 3% per month
Charge Voltage @20~25°C
Float charge voltage.............................................................................13.6V-13.8V
Equalize Charge Voltage......................................................................14.4V-14.9V

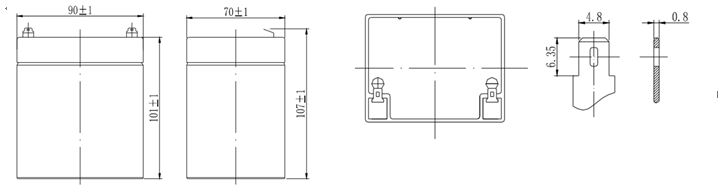

Dimensions

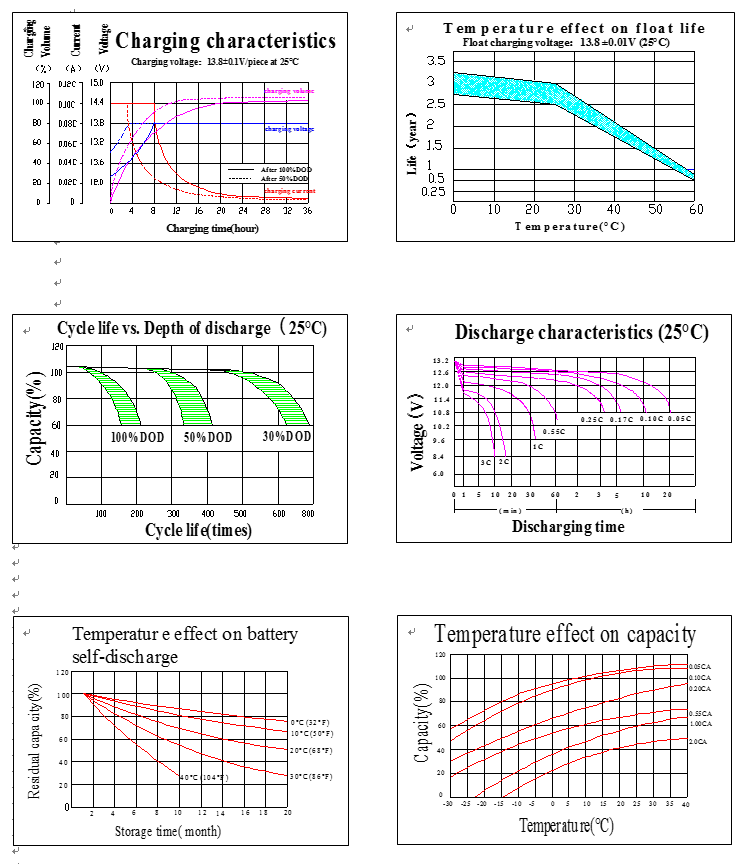

Performance Characteristics

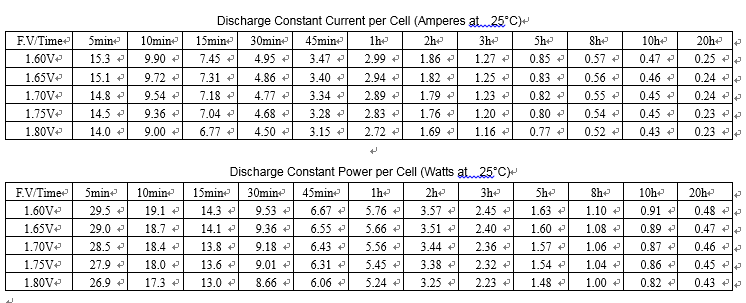

Battery Discharge

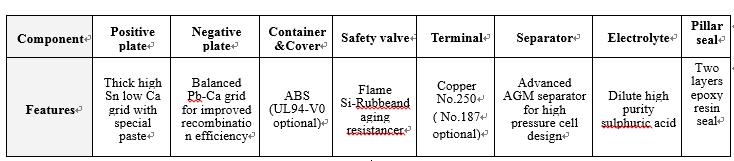

Battery Construction
Product specifications are subject to change without further notice.
